因为windows本身是不支持snmp v3的,所以需要第三方工具的帮助
这里我们选择常用的net-snmp
步骤:
1.关闭本系统中的SNMP服务
2.安装vc x64库
3.安装openssl x64版本(最新版本)
4.解压openssl 0.9.8zf x64版,将ssleay32.dll和libeay32.dll复制进c:/windows/system32和c:/windows/syswow64 里,替换原文件
5.安装net-snmp-5.5.0-2.x64版本的net-snmp,记得勾选with windows extension dll support和encryption support(openssl)选项(WINDOWS DLL可以开启一些不能使用的功能,encrytion support才可以开启登录且验证的SNMP V3功能)
6.安装activeperl,默认安装既可
7.运行c:/usr/registeragent.bat 把SNMP V3服务进行注册
8.编写 c:\usr\etc\snmp\snmpd.conf 配置文件,这里我用的配置如下(细节不赘述)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 | agentAddress udp:0.0.0.0:161 createUser authPrivUser SHA "passwordauthprivuser" DES # Full read-only access for SNMPv3 # Full write access for encrypted requests # Remember to activate the 'createUser' lines above rouser authPrivUser priv sysLocation Sitting on the Dock of the Bay sysContact Me <me@example.org> # Application + End-to-End layers sysServices 72 # At least one 'mountd' process proc mountd # No more than 4 'ntalkd' processes - 0 is OK proc ntalkd 4 # At least one 'sendmail' process, but no more than 10 proc sendmail 10 1 # 10MBs required on root disk, 5% free on /var, 10% free on all other disks #disk / 10000 #disk /var 5% #includeAllDisks 10% # Unacceptable 1-, 5-, and 15-minute load averages load 12 10 5 # send SNMPv2c traps # send SNMPv2c INFORMs # Remember to activate the 'createUser' lines above iquerySecName internalUser rouser internalUser # generate traps on UCD error conditions defaultMonitors yes # generate traps on linkUp/Down linkUpDownNotifications yes # Run as an AgentX master agent master agentx # Listen for network connections (from localhost) # rather than the default named socket /var/agentx/master |

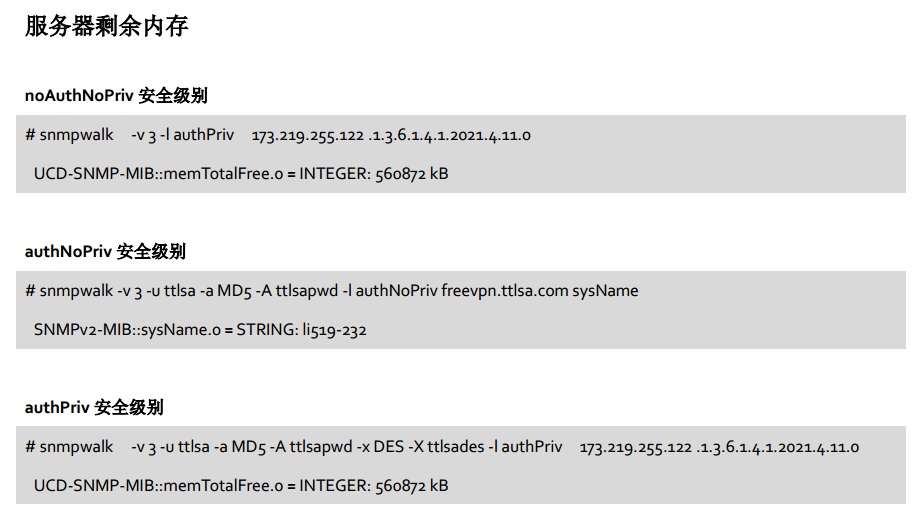

测试:
snmp v3 安全级别有三种,分别为 noAuthNoPriv(不认证也不加密)、authNoPriv(认证但是不加密)、 authPriv(既认证又加密)
常见的 SNMP OID列表 监控需要用到的OID如下连接:
http://www.ttlsa.com/monitor/snmp-oid/
本次整个配置过程所有程序安装包在此下载:
