原始的nginx文件服务器autoindex功能非常单一,也不够美观,连按时间或者文件大小排序功能都没有,所以通过nginx插件和修改源码的方式为其增加了一些新的功能。
最终效果如下:
用到的插件为file-md5和ngx-fancyindex,nginx版本是1.6.2
git clone https://github.com/cfsego/file-md5.git git clone https://github.com/aperezdc/ngx-fancyindex.git wget https://github.com/nginx/nginx/archive/release-1.6.2.tar.gz
修改/ngx-fancyindex/template.h文件
//插入script "<script src=\"https://ajax.googleapis.com/ajax/libs/jquery/3.2.1/jquery.min.js\">" "</script>" "<script src=\"/static/md5.js\">" "</script>" //修改页面表格宽度 "<tr>" "<th style=\"width:30%\"><a href=\"?C=N&O=A\">File Name</a> <a href=\"?C=N&O=D\"> ↓ </a></th>" "<th style=\"width:35%\"><a href=\"?C=S&O=A\">File Size</a> <a href=\"?C=S&O=D\"> ↓ </a></th>" "<th style=\"width:25%\"><a href=\"?C=M&O=A\">Date</a> <a href=\"?C=M&O=D\"> ↓ </a></th>" "</tr>"
接着执行
cd ./nginx-release-1.6.2 ./auto/configure --prefix=/usr/local/nginx --with-pcre --with-http_stub_status_module --with-http_ssl_module --with-http_gzip_static_module --add-module=../file-md5-master --add-module=../ngx-fancyindex make
然后修改nginx配置文件
vi /etc/nginx/site-enable/default ########################### 更多fancyindex插件配置选项参考 http://www.ttlsa.com/nginx/nginx-module-ngx-fancyindex/ https://www.nginx.com/resources/wiki/modules/fancy_index/#directives ########################### root /var/www; //改为需要路径,测试机中是/var/www/ location / { 36 # First attempt to serve request as file, then 37 # as directory, then fall back to displaying a 404. 38 fancyindex on; 39 fancyindex_exact_size off; 40 fancyindex_ignore "static"; 41 add_header Content-MD5 $file_md5; 42 }
在需要分享的路径创建文件./static/md5.js,测试机中是/var/www/
mkdir /var/www/static vi /var/www/static/md5.js
$(document).ready(function(){ var current_index = 1; function get_md5(){ if(current_index==$("tr").length){ return; } var url = $("tr")[current_index].childNodes[0].childNodes[0].href; $.ajax({ url: url, type: "HEAD", complete: function(jqXHR, textStatus) { var file_size = $("tr")[current_index].childNodes[1].childNodes[0].data; var md5 = jqXHR.getResponseHeader("Content-MD5"); console.log(jqXHR.getAllResponseHeaders()); if(md5!=null && file_size!="-"){ $("tr")[current_index].childNodes[1].innerHTML += ("  "+"[md5:"+md5+"]"); } current_index++; get_md5(); } }); } get_md5(); });
然后在nginx-release-1.6.2目录下
killall nginx cd ./objs ./nginx -c /etc/nginx/nginx.conf
即可
关于md5.js原理的一些小说明:

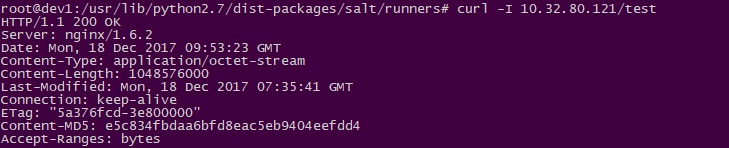

file-md5模块是第三方模块,必须通过手动编译安装。 功能是将文件md5值插入文件的http头的Content-MD5字段中,效果如图
在ngx-fancyindex源码中,调用md5.js的js脚本,从前端通过jquery ajax读取所有文件http头重的Content-MD5字段,再写入页面中。
因为ajax是异步的,所以无法通过普通的for循环或者赋值给全局变量的方式运行,所以要用递归+回调函数的方式,才能达成正确的效果。
设置递归终止条件current_index==$("tr").length,循环遍历所有的文件连接,提取http头中的md5值写入页面中即可。
但性能还是有些问题的,有些大文件的计算比较浪费时间。这里已经将ajax的请求type换成了HEAD类型,因为不再请求文件主体,所以请求速度是GET类型的10倍以上。
所有文件git地址:
https://github.com/calmkart/nginx_autoindex-
编译好的nginx可执行文件:
https://github.com/calmkart/nginx_autoindex-/archive/0.1.tar.gz
